ST segment elevation is observed during transmural ischemia.

  Coronary spasm causing transmural myocardial ischemia may also result in ST segment elevation.

  Persistence of myocardial ischemia more than 20 minutes initiates myocardial necrosis. Therefore, ST segment elevation is seen not only in myocardial ischemia but also in the first hours of myocardial infarction.



Causes of ST segment elevation

  Early repolarization

  Acute myocardial infarction

  Prinzmetal angina (coronary vasospasm)

  Left bundle branch block (LBBB)

  Left ventricular hypertrophy

  Pericarditis

  Left ventricular aneurysm

  Brugada syndrome

  Hypercalcemia (very rare)

  5-Fluorouracil (5-FU) / Capecitabine chemotherapy




ECG 1. The ECG above belongs to a healthy young man. The ST segment elevation is due to early repolarization.
The concavity of the elevated ST segment looks upward. There is no accompanying reciprocal ST segment depression.

Click here for a more detailed ECG




ECG 2. Upwardly concave ST segment elevation in a patient with acute pericarditis.

Click here for a more detailed ECG




ECG 3a. This patient was diagnosed as acute anterior myocardial infarction because of ST segment elevation in anterior leads .
The concavity of the ischemic ST elevation looks downwards. This patient also has accompanying reciprocal ST segment
depression .

Click here for a more detailed ECG



ECG 3b. While preparing to start intravenous thrombolytic therapy, sublingual nitroglycerin was administered to the patient.
In a few minutes, the chest pain disappeared. Ten minutes after nitroglycerin, ST segment elevation was not seen anymore.

Click here for a more detailed ECG




ECG 4a. Ischemic ST segment elevation in the inferior leads during typical chest pain in a patient with coronary artery disease.

Click here for a more detailed ECG



ECG 4b. After 15 minutes the chest pain disappeared. ECG shows no ST segment elevation.

Click here for a more detailed ECG

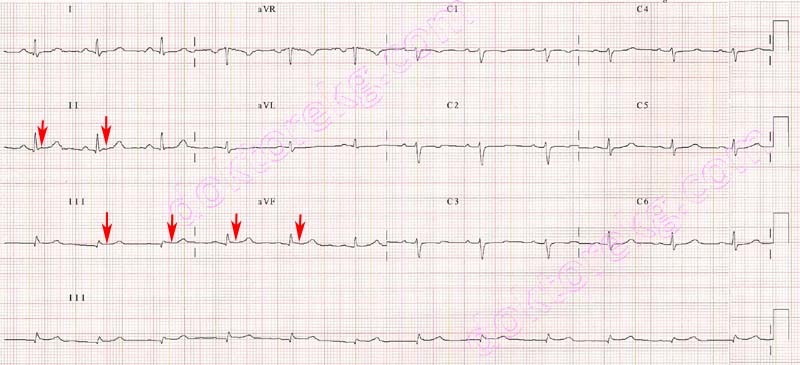

ECG 5. Generally, ST segment elevation less than 1 mm does not suggest coronary stenosis.
The ECG above shows ST segment elevation in inferior leads . He has no coronary artery stenosis.

Click here for a more detailed ECG




ECG 6a. This ECG was recorded just before the treadmill exercise test. There is no ST segment abnormality in this pretest ECG.

Click here for a more detailed ECG



ECG 6b. The ECG after 2 minutes and 50 seconds of exercise shows ST segment elevation in the inferior leads .

Click here for a more detailed ECG



ECG 6c. In the recovery period (20 seconds after stopping treadmill), the ECG still shows ST segment elevation in inferior leads .
Persistence of ST segment elevation in the recovery period suggests significant coronary stenosis.

Click here for a more detailed ECG



ECG 6d. The ECG above was recorded 2 minutes and 20 seconds after the ending of exercise.
There is no ST segment elevation in the inferior leads.

Click here for a more detailed ECG



Figure 1. Later on, this patient underwent coronary angiography which
revealed 99% stenosis in the right coronary artery (RCA) .




ECG 7. The rhythm tracing above belongs to a woman with unstable angina pectoris. During coronary angiography, 95% stenosis
in the LAD coronary artery was detected and balloon angioplasty was performed to open the artery. Just before the inflation of
the balloon, one channell ECG recording started. A few seconds after inflating the balloon,
ST segment and T wave started to elevate. Shortly after deflating the balloon, these changes started to regress.

The long rhythm tracing above was recorded from the defibrillator and was cut into 4 pieces for scanning purposes.
The tracing was reconstructed again by photoshop.

Click here for a more detailed ECG
