ECG criteria

  1- to 3-mm upsloping ST-segment depression at J point that continues into tall, positive symmetrical T waves.

  Involves leads V1 to V6.

  Loss of precordial R-wave progression may accompany.

  1- to 2-mm ST-elevation in lead aVR may coexist.

  This pattern is seen in 2% of acute anterior wall myocardial infarction.



References (with links to full text and sample ECGs)

  N Engl J Med 2008;359:2071-2073.

  Am J Cardiol 2016;118(7):1095-1096.

  J Electrocardiol 2016;49(1):76-80.




Figure 1. De Winter's T wave.

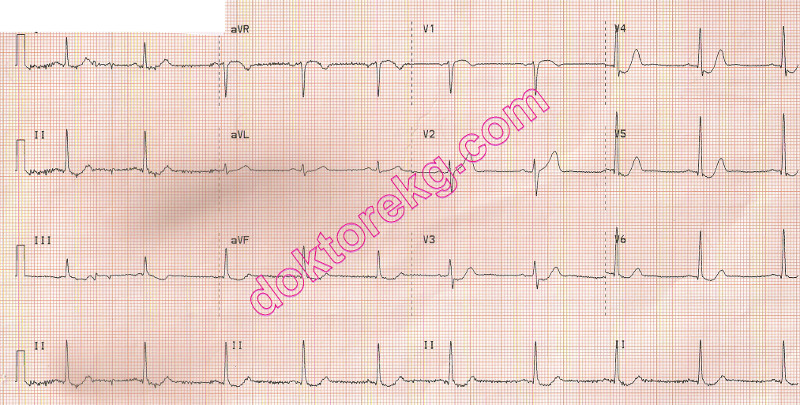

ECG 1. The ECG above is from a 40 years-old man.
It was recorded at the first hour of the onset of chest pain in the emergency room.
De Winter's T waves are seen in leads V3 to V6.
R wave progression is normal in this patient.

Dr. Ahmet Uzan has donated the above ECG to our website.
