Dr. Mete ALPASLAN
Congenital Absence of the Pericardium and the ECG
Last update: May 2020
ECG abnormalities that may be observed in patients with congenital absence of the pericardium
Right axis deviation.
Right bundle branch block (usually incomplete RBBB).
Poor R wave progression in anterior leads.
Tall and peaked P waves in right precordial leads (V1-V3).
Negative T waves in inferolateral leads.
QRS alternance during treadmill exercise test (due to the exaggerated translational movement of heart).
References and links for sample ECGs
Cardiology 2017;136:270-278.
Rev Port Cardiol 2014;33:249.e1-5. (free full-text)
Circulation 2010;121:1272-1274.
Clin Cardiol 2010;33:E52-57.
Circulation 2007;116:e126-e129.
Rev Port Cardiol 2003;22:801-810.
Ulster Med J 1988;57:90-92.
Br Heart J 1986;55:405-407.
J Electrocardiol 1981;14:413.
Thorax 1968;23:598-607. (free full-text)

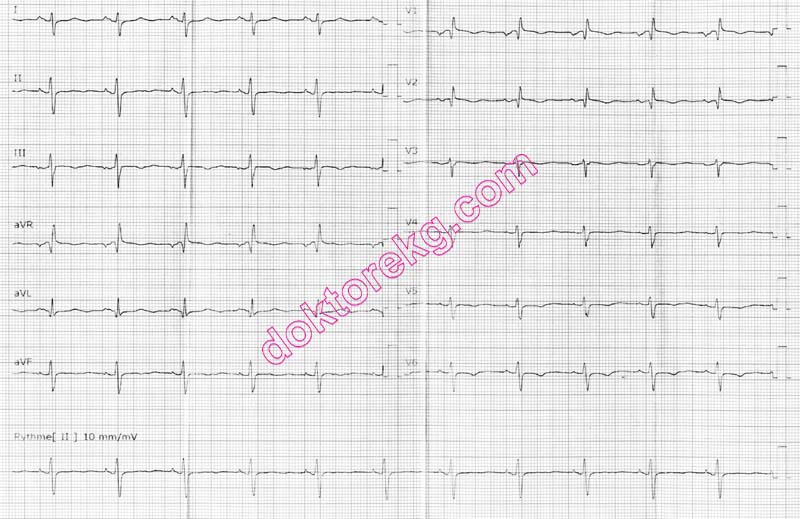

ECG 1. The ECG above, belongs to a patient with congenital complete absence of the left pericardium.
Dr. Jean-Christophe EICHER has donated the above ECG.
Click here for a more detailed ECG

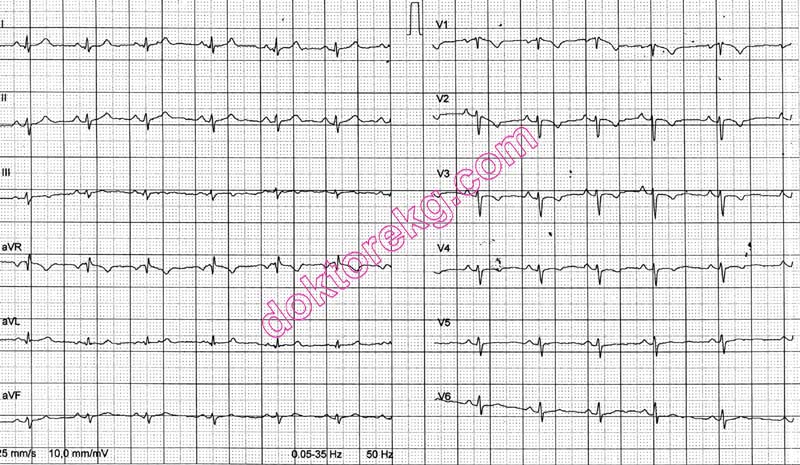

ECG 2. The ECG above, belongs to a patient with congenital complete absence of the left pericardium.
Dr. Jean-Christophe EICHER has donated the above ECG.
Click here for a more detailed ECG

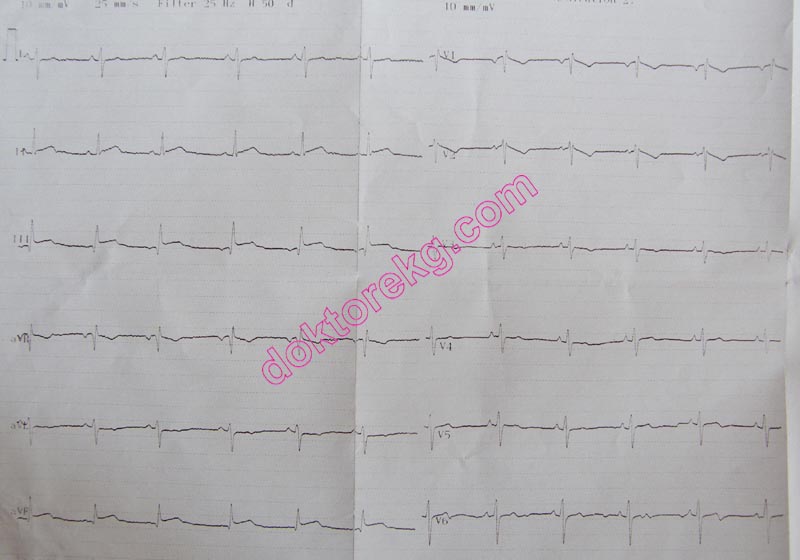

ECG 3. The ECG above belongs to a 32 years-old with congenital absence of the pericardium.
The ECG shows poor R wave progression in the precordial leads.
Click here for a more detailed ECG
The ECG above has been used with the permission of Anatolian Journal of Cardiology and AVES Publishing.
Click here to read the relevant article of Dr. Muammer Cumhur Sivrikoz et al.
