Diagnostic criteria

  The amplitude of QRS complexes in limb leads are < 5mm (0.5mV).

  The amplitude of QRS complexes in precordial leads are < 10mm (1 mV).



Low voltage is seen in patients with

  Pericardial effusion

  Constrictive pericarditis

  Hypothyroidism

  Amyloidosis

  Morbid obesity

  Pneumothorax

  Pneumopericardium

  Pleural effusion

  Emphysema

  Scleroderma

  Acute pulmonary embolism

  Anasarca

  Cardiac herniation (after pneumonectomy)



Low voltage only in limb leads

  Although not specific, this has been reported to be more frequent in patients with dilated cardiomyopathy.




In some patients with congestive heart failure, the preexisting low voltage may disappear after vigorous
diuretic therapy.



Observation of the following triad suggests the need for exclusion of pneumothorax

  Isolated low voltage in lead I

  Poor R wave progression in chest leads

  Lead aVF/Lead I QRS amplitude ratio is > 2



References

  J Electrocardiol 2010;43:725-726.

  Journal of Electrocardiology 2008;41:281-286.

  Am J Emerg Med 2008;26:959-962.





ECG 1. Low voltage in a patient with long-standing emphysema.

Click here for a more detailed ECG




ECG 2. If a patient with preexisting low voltage has acute myocardial infarction, it may be difficult to recognize the ST segment
elevation at a first glance.

Click here for a more detailed ECG




ECG 3. The above ECG is from a morbid obese woman a body mass index of 49. Low voltage is seen in the limb leads.
This patient has long-standing hypertension and is taking 4 antihypertensive drugs daily.

Click here for a more detailed ECG




ECG 4. The above ECG is from a 58 years-old man with pericardial effusion and shows low voltage.

Click here for a more detailed ECG




ECG 5a. The above ECG is from a 63 years-old hypertensive diabetic woman. There is low voltage in limb leads.
Also the PR interval is prolonged : first degree atrioventricular (av) block.
The low voltage makes it difficult to recognize the prolonged PR in interval in limb leads at first glance.

Click here for a more detailed ECG




ECG 5b. Then the ECG was recalibrated at 20 mm/mV .
Now P waves and the prolonged PR interval are easily discernible in limb leads.

Click here for a more detailed ECG




ECG 6a. The ECG above is from an 82 years-old woman with orthopnea.
Echocardiography showed mild mitral stenosis and right heart failure, but no pericardial effusion.
She has atrial fibrillation with a high ventricular response.
Diuretic and digoxin therapy were initiated.
Calibration of the ECG is 10 mm/mV but still low voltage is seen in limb leads.

Click here for a more detailed ECG



ECG 6b. After losing 7 kgs of body weight with vigorous diuresis in several days, her complaint of orthopnea disappeared.
The rhythm is still atrial fibrillation but amplitude of the QRS complexes are increased now.
Calibraiton of the ECG is still 10 mm/mV.
Digoxin effect is also seen in the above ECG (sagging-type ST segment depression in precordial leads, I, II and aVF).

Click here for a more detailed ECG




ECG 7. The ECG above is from a 73 years-old man with dilated cardiomyopathy.
Low QRS voltage is seen only in limb leads.
Although not specific, the low voltage confined to limb leads is seen more frequently
in patients with dilated cardiomyopathy.

Click here for a more detailed ECG

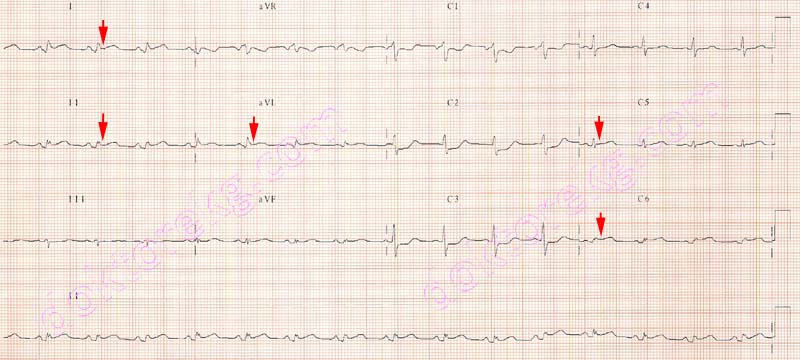

ECG 8. The ECG above is from a 68 years-old diabetic woman with coronary artery disease.
Because of the low QRS voltage, P waves are difficult to see at first glance.

Click here for a more detailed ECG




ECG 9a. The ECG above is from a 55 years-old man with coronary artery disease.
Both limb leads and precordial leads show low voltage.
The patient had experienced acute inferoposterior myocardial infarction in the past.
Now, he has left ventricular systolic dysfunction with an Ejection Fraction of 35%.
Inferior leads show negative T waves. Lead II shows q wave while leads III and aVF show subtle initial r waves.
In this patient, the only ECG abnormality to suggest posterior wall involvement is the presence of
(relatively) tall R wave and T wave in lead V2.
There is also left axis deviation.

Click here for a more detailed ECG



ECG 9b. The compact ECG above is derived from ECG 9a.




ECG 10. The ECG above is from a 73 years-old obese woman with hypertension.
She has a dilated left ventricle (LV) and left atrium.
The rhythm is atrial fibrillation.
Despite the presence of hypertension and a dilated LV, the ECG shows low voltage due to obesity.

Click here for a more detailed ECG




ECG 11. Above ECG is from a 63 years-old hypoxic obese man with chronic obstructive pulmonary disease (COPD)
It was recorded when he was hospitalized at intensive care unit.
The rhythm is coarse-wave atrial fibrillation with rapid ventricular response.
P waves and a flat baseline are not seen, RR intervals are irregular.
Limb leads show low voltage due to obesity and COPD.
ECHOcardiography showed dilated left atrium, right atrium and right ventricle.
His left ventricular systolic function was normal.
The thickened ECG tracing of chest leads is due to 50/60 Hz AC interference artifact.

Click here for a more detailed ECG
