Initiation of Atrial Fibrillation
Triggers of atrial fibrillation
  Atrial premature beats - APC ( most common )
  Atrial flutter
  Supraventricular tachycardias
  Bradycardia
  Acute atrial stretch.
ECG 1a. Above is a 3-channel Holter tracing from a middle-aged woman with attacks of palpitation.
Holter recording showed multiple episodes of paroxysmal atrial fibrillation.
Atrial premature beat initiates atrial fibrillation.
Atrial premature beat is the most frequent trigger of atrial fibrillation.
Click here for a more detailed ECG

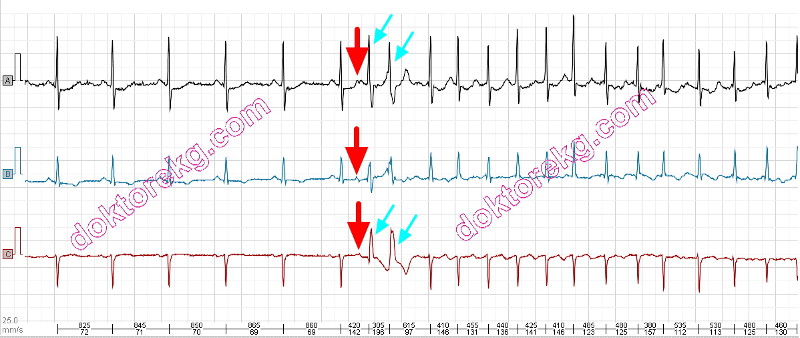

ECG 1b. Above is another strip from her Holter recording.
Atrial premature beat initiates atrial fibrillation.
The first 2 QRS complexes are aberrantly conducted (Ashman phenomenon).
Click here for a more detailed ECG
ECG 1c. Above is another strip from her Holter recording.
The first atrial premature beat is aberrantly conducted , but it cannot initiate atrial fibrillation.
Second atrial premature beat initiates atrial fibrillation. The first 2 QRS complexes are aberrantly conducted
(Ashman phenomenon).
Click here for a more detailed ECG
ECG 1d. Above is another strip from her Holter recording.
Every atrial premature beat cannot initiate atrial fibrillation.
The first and second atrial premature beats are conducted aberrantly, but they cannot initiate atrial fibrillation.
The third atrial premature beat initiates atrial fibrillation of which the first 2 QRS complexes show aberration.
(Ashman phenomenon).
Click here for a more detailed ECG
ECG 1e. Above is another strip from her Holter recording.
Sometimes paroxysms of atrial fibrillation may last very short(as seen above).
The first atrial premature beat initiates atrial fibrillation.
The following two QRS complexes are aberrantly conducted
(Ashman phenomenon).
Sinus rhythm resumes after 6 beats of atrial fibrillation.
Click here for a more detailed ECG
ECG 1f. Above is another strip from her Holter recording. Fibrilloflutter.
While the left left side of the ECG shows atrial flutter, the rhythm then changes to atrial fibrillation on the right side of the ECG.
Click here for a more detailed ECG
ECG 2. The Holter rhythm tracing above is from another middle-aged woman.
This is another example of a very short lasting episode of atrial fibrillation.
The first atrial premature beat initiates atrial fibrillation.
The first 2 QRS complexes are conducted aberrantly
(Ashman phenomenon).
Sinus rhythm resumes in a very short time.
Click here for a more detailed ECG
ECG 3a. The above rhythm tracing is from a middle-aged man who had undergone aortic valve replacement for severe
aortic stenosis. The very first beat on the left side is a sinus beat.
The first atrial premature beat is blocked since it is "too" premature.
It also could not initiate atrial fibrillation.
It is followed by a short-lasting episode of ectopic atrial tachycardia with
negative P waves.
The ectopic atrial tachycardia is followed by a sinus beat and then atrial fibrillation starts.
The sweep speed of this Holter recording is 25 mm/second.
Click here for a more detailed ECG
ECG 3b. The above rhythm Holter tracing is the continuation of the tracing in ECG 3a.
The last beat of the ectopic atrial tachycardia is followed by a
sinus beat. Meanwhile, a pause of 1.1 seconds developes.
Then, the following atrial premature beat initiates atrial fibrillation.
The sweep speed of this Holter recording is 25 mm/second.
Click here for a more detailed ECG
ECG 3c. The above rhythm tracing is derived from the ECG 3b, but it is displayed at a sweep speed of 50 mm/second.
The calibration is also increased.
The last beat of the ectopic atrial tachycardia is followed by a
sinus beat. Meanwhile, a pause of 1.1 seconds developes.
Then, the following atrial premature beat initiates atrial fibrillation.
Click here for a more detailed ECG
ECG 4. The above rhythm Holter tracing belongs to another middle-aged man.
An atrial premature beat during sinus tachycardia initiates atrial fibrillation.
The sweep speed of this Holter recording is 25 mm/second.
Click here for a more detailed ECG
ECG 5a. The ECG above belongs to a 62 years-old woman with hypertension and coronary artery disease.
The patient is also having chemotherapy and radiotherapy for lung cancer.
She complains of palpitation.
There is a single atrial premature beat (APC) in the above ECG.
An atrial premature beat may have prolonged PR interval, as in the case above.
Click here for a more detailed ECG
ECG 5b. The ECG above belongs to the same woman.
Four atrial premature beats deform the preceding T waves.
These atrial premature beats have prolonged PR intervals.
Click here for a more detailed ECG
ECG 5c. The ECG above belongs to the same woman. Some sinus beats are seen.
An atrial premature beat deforms the preceding T waves but fails to initiate atrial fibrillation
while some atrial premature beats initiate short-lasting episodes of atrial fibrillation.
Click here for a more detailed ECG
ECG 5d. The ECG above belongs to the same woman. Some sinus beats are seen.
Some atrial premature beats deform the preceding T waves but fail to initiate atrial fibrillation
while an atrial premature beat initiates a short-lasting episode of atrial fibrillation.
Click here for a more detailed ECG
ECG 5e. The ECG above belongs to the same woman. Some sinus beats are seen.
Some atrial premature beats deform the preceding T waves but fail to initiate atrial fibrillation
while an atrial premature beat initiates a short-lasting episode of atrial fibrillation.
Click here for a more detailed ECG
ECG 5f. The ECG above belongs to the same woman. Sinus beats and atrial premature beats
initiating atrial fibrillation with short-lasting episodes of atrial fibrillation are seen.
Click here for a more detailed ECG
ECG 5g. The ECG above belongs to the same woman.
There are sinus beats with short-lasting episodes of atrial fibrillation.
Click here for a more detailed ECG
ECG 5h. The ECG above belongs to the same woman. The first 3 beats are sinus beats, followed by
an atrial premature beat initiating atrial fibrillation.
Click here for a more detailed ECG
ECG 5i. The ECG above belongs to the same woman. Sinus beats, frequent atrial premature beats and
a short-lasting episode of atrial fibrillation are seen.
Click here for a more detailed ECG
ECG 5j. The ECG above belongs to the same woman. The rhythm is atrial fibrillation.
No sinus beats, no atrial premature beats.
Click here for a more detailed ECG

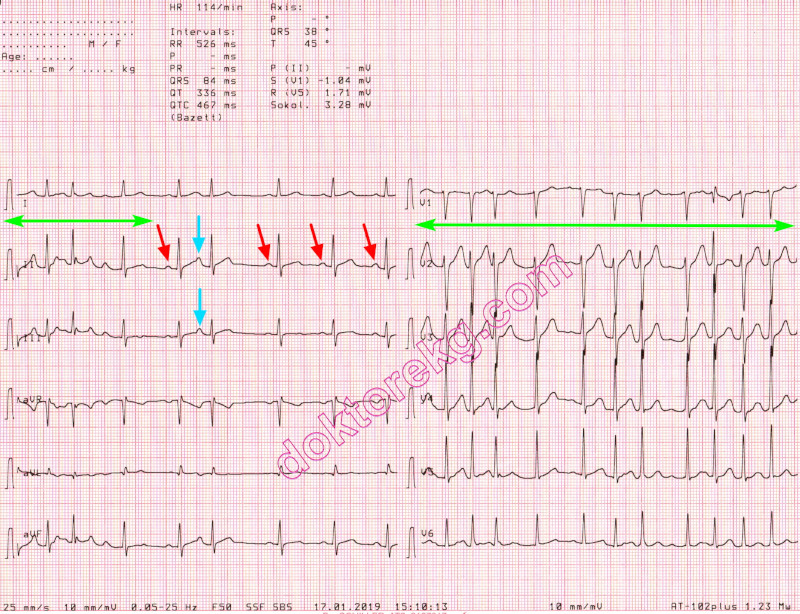

ECG 6a. Above is an ECG from a 36 years-old man with no structural heart disease.
He complains of recent-onset palpitation attacks.
Between attacks of atrial fibrillation, short-lasting sinus rhythm and an atrial premature beat are seen.
Click here for a more detailed ECG
ECG 6b. Above ECG belongs to the same man.
Short-lasting episode of atrial fibrillation is seen.
Click here for a more detailed ECG
